| Brand Name : | GreenTouch |
| Model Number : | GT-IR-TＢ32.0-1 |
| Certification : | CE, FCC, ROHS |
| Payment Terms : | T/T, MoneyGram |
| Supply Ability : | 10,000pcs per month |
| Delivery Time : | 3-7 working days after received your payment |
Standard Black 32 Inch Infrared Touch Frame CE , FCC , ROHS Certification
Description:
| Model number | Ratio | Outline(mm) | Active Area(mm) | Thickness(mm) | Touch point |
| GT-IR-TB32.0-1 | 16:9 | 740.4 *434.9 | 699 *393.5 | 14.0 | 10/16/20 |
Main specification:
| Touch Screen Size | 32" |
| Touch Activation Force | No pressure required |
| Luminous Transmission | >92%(100% with no glass) |
| Reported Touch Resolution | Without Driver: 32768*32768 |
| Touch Response Time(Multi touch) | 10-15ms |
| Touch Response Time(One touch) | 7ms |
| Minimum Recognition Point Size | 4mm*4mm |
| Touch Object Size Recognition | Yes |
| Interface | Socket type USB cable 1.5 m, socket type 5P |
Electrical Specification
| Touch Refresh Rate | ≥ 110Hz |
| Communication | USB 2.0 Full Speed |
| PowerSupply Mode | USB*1 |
| Working Voltage | DC 5.0V±5% |
| Average Current | ≤200mA |
| Power Cunsumption | ≤ 1.0W |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than 10% non-consecutive sensors are damaged |
Environmental Specification
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃～50℃ |
| Storage temperature:-20℃～60℃ | |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge |
| Anti-light Interference | Excellent |
Software Specification
| Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
| Support OS(Multi touch) | Windows10,Windows8,Windows7,Andriod |
| Support OS (One touch) | WindowsXP,MacOS.Linux |

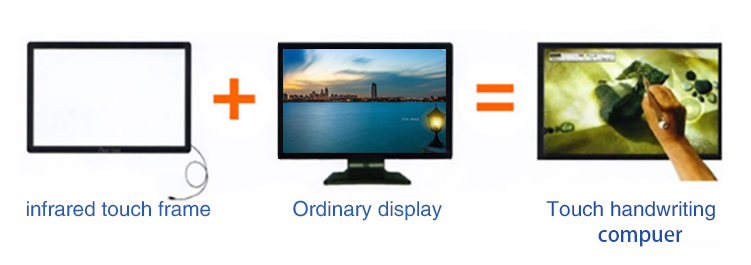

Application:
Technical Principle:
Infrared touch screen is to use a dense matrix of infra-red x, y
directions to detect and locate the user's touch. Infrared touch
screen installed in front of the monitor box outside a circuit
board, circuit board arranged on four sides of the screen infrared
led and an infrared receiver and corresponding anyway cross the
infrared matrix.
When users touch the screen, fingers will be blocked anyway after
the location for both infrared and therefore can judge the position
of the touch points on the screen .it can detect essentially any
input including a finger, gloved finger, stylus or pen.
