| Brand Name : | GreenTouch |
| Model Number : | GT-IR-TK18.5-1 |
| Certification : | CE, FCC, ROHS |
| Payment Terms : | T/T, MoneyGram |
| Supply Ability : | 10,000pcs per month |
| Delivery Time : | 3-7 working days after received your payment |

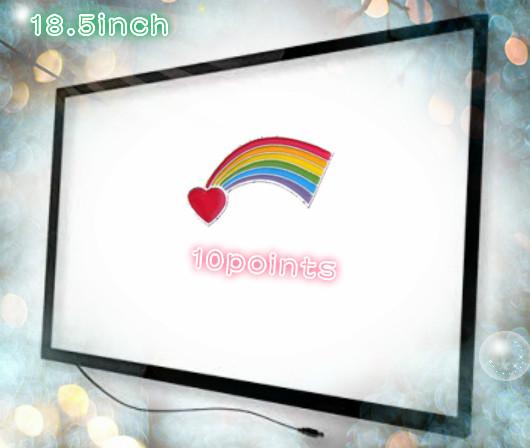

Standard Black 18.5Inch Infrared Touch Frame CE , FCC , ROHS Certification
Feature:
| Model number | Ratio | Outline(mm) | Active Area(mm) | Thickness(mm) | Touch point |
| GT-IR-TK18.5-1 | 16:9 | 454*275 | 412*233 | 8.0 | 10/16/20 |
Product Specification:
| Frame material | Aluminum alloy |
| Exterior color | black |
| Glass | Built-in 3mm tempered glass |
| Interpolation resolution | 4096*4096 |
| Response speed | ≤15ms |
| Touch accuracy | More than 90% of the touch area is ±2mm |
| Input | Fingers, touch pens, etc. |
| Output Type | Coordinate / output |
| Theoretical clicks | Unlimited times |
| Minimum touch object | 5mm |
| Interface Type | USB |
Electronic characteristics
| Scanning frequency | 200HZ |
| USB | A-USB |
| USB-D+USB-D- | |
| Power supply mode | USB to take power |
| Power supply voltage | DC+5V±5% |
| Working current | <200mA |
Environmental characteristics
| Project | Specification |
| Temperature range | Operating temperature:-10 °C ~ 50 °C |
| Storage temperature:-20 °C ~ 60 °C | |
| Relative humidity | Operating humidity:10%~85% RH |
| Operating humidity:10%~90% RH | |
| Light resistance | Have certain light resistance |
Software features
| Project | Specification |
| Touch/type | Single touch/2 point touch |
| Touch supported operating system | Windows7//8/10/Windows XP/Vista/Linux/Android |
About GreenTouch:
Shenzhen GreenTouch Technology Co., Ltd. is a professional manufacturer of product.Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch machine. Our company has our own brand—GreenTouch and provides customers with touch products including SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen,various touch screen monitors and touch all in one PC TV. GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation.Our products have been certified to CE, FCC, ETL, ROHS andUL. The objective of GreenTouch is to become the most reliable supplier oftouch screen, high value-added and special touch products and touch solutions in the world.
|
|
