| Brand Name : | GreenTouch |
| Model Number : | GT-IR-TＢ27.0-1 |
| Certification : | CE, FCC, ROHS |
| Payment Terms : | T/T, MoneyGram |
| Supply Ability : | 10,000pcs per month |
| Delivery Time : | 3-7 working days after received your payment |

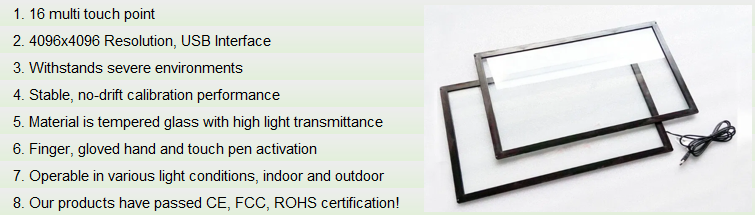

Standard Black 27Inch Infrared Touch Frame CE , FCC , ROHS Certification
| Model number | Ratio | Outline(mm) | Active Area(mm) | Thickness(mm) | Touch point |
| GT-IR-TB27.0-1 | 16:9 | 639.4* 378.4 | 598*337 | 14.0 | 16 |
Main specification
| Touch Screen Size | 27" |
| Touch Activation Force | No pressure required |
| Luminous Transmission | >92%(100% with no glass) |
| Reported Touch Resolution | Without Driver: 32768*32768 |
| Touch Response Time(Multi touch) | 10-15ms |
| Touch Response Time(One touch) | 7ms |
| Minimum Recognition Point Size | 4mm*4mm |
| Touch Object Size Recognition | Yes |
| Interface | Socket type USB cable 1.5 m, socket type 5P |
Electrical Specification
| Touch Refresh Rate | ≥ 110Hz |
| Communication | USB 2.0 Full Speed |
| PowerSupply Mode | USB*1 |
| Working Voltage | DC 5.0V±5% |
| Average Current | ≤200mA |
| Power Cunsumption | ≤ 1.0W |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than 10% non-consecutive sensors are damaged |
Environmental Specification
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃～50℃ |
| Storage temperature:-20℃～60℃ | |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge |
| Anti-light Interference | Excellent |
Software Specification
| Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
| Support OS(Multi touch) | Windows10,Windows8,Windows7,Andriod |
| Support OS (One touch) | WindowsXP,MacOS.Linux |
Application:

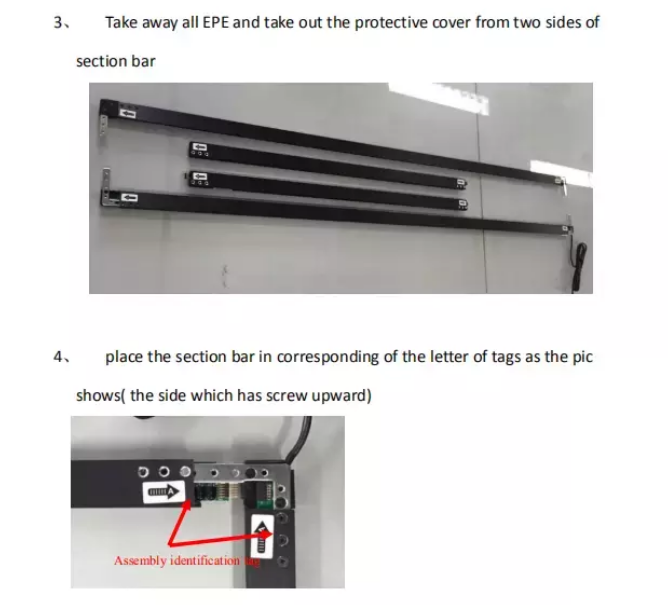

Assembly process:
Packing and shipping:
About us:
|
