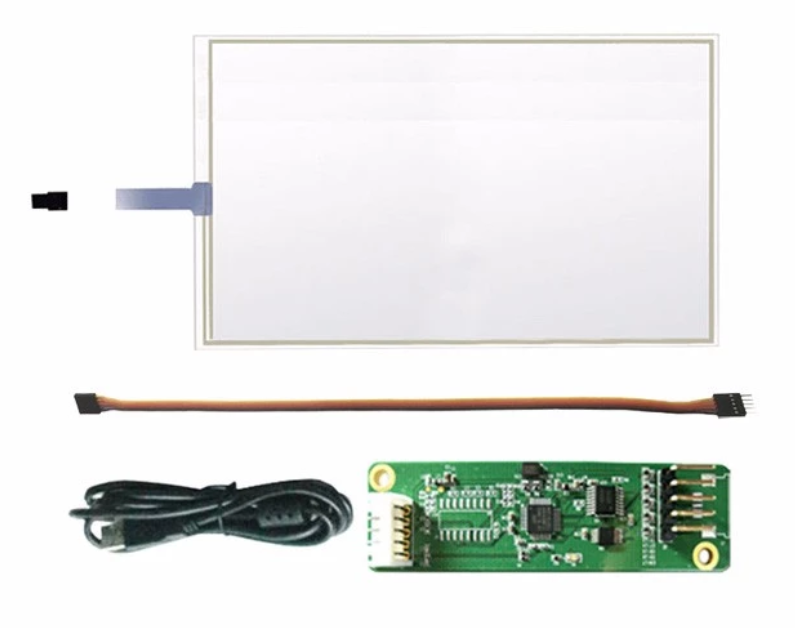

14.1 Inch 5 Wire Resistive Touch Screen Finger Gloved Hand And Touch Pen Activation
Description:
Model Information:
| Product model | Szie | 5wire TP Product size | |||||
| Out sizeTP(mm) | VA size(mm) | AA size(mm) | Thickness | PFC location | |||
| GT-5W-14.1A-1 | 14.1" | 307x230 | 288.75x216.94 | 288x216.4 | 2.3mm | Short side | |
| Interface Type: | USB or RS232 |
| Resolution | 4096x4096 |
| Screen Ratio | 4:3 |
| Material | Glass + Film |
| Certificates | CE, FCC, RoHS |
| Input method | Finger or touch pen |
| Position accuracy | 2~5mm |
| Operating Voltage | DC ≤ 10V |
| Operating current | 5~25mA |
| Response time | Less than 10ms |
| Touch action force | 20~100g |
| Operating temperature | -10°C~60°C |
| Storage temperature | -20°C~70°C |
| Surface hardness | 3H |
| Working environment | Under sunlight, indoor and outdoor |
| Transparency | ≥75% |
| Isolation resistance | ≥20MΩ DC 25V |
| X.Y resistance | 30Ω~350Ω according to the size |
| Linearity | ≤2% |
| The number of hits | ≥35,000,000/point |
| Warranty | 1 year |
| Support Systems | Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac |
Applications:
Packing and shipping:
ompetitive Advantage:
5 wire resistive touch screen features unrivaled accuracy,
reliability, superior light transmission, highest touch point
density, touch input variety. Impervious to environmental
conditions such as liquid splashes, contamination. The lifetime is
up to 35 million finger touches.
Technical Principle:

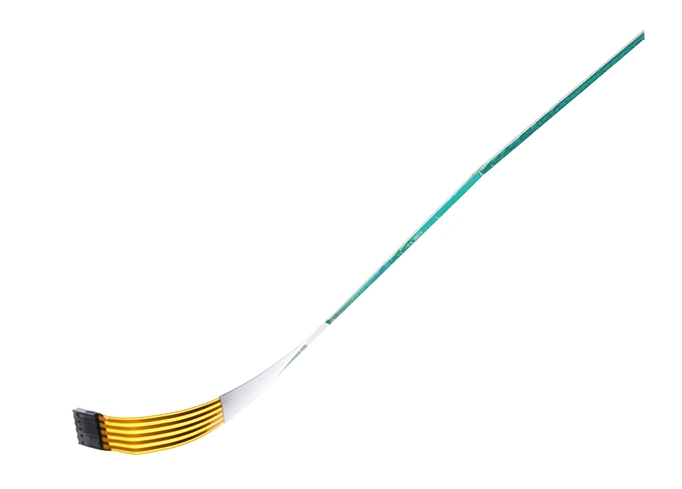

5 wrie resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.
When the top ITO film is pressed and makes contact with the bottom glass, the contacted area will be detected via electrical conduction. The notable characteristic of 5wire resistive is that only the bottom glass has detecting function. Even if the top ITO film is damaged, the detecting function will not beaffected(except for the damaged area).
