Shenzhen GreenTouch Technology Co., Ltd Adhere to people-oriented, customer-oriented, quality first, service. Dedicated to providing customers with quality products, service and technical support.
10 Years
| Ask Lasest Price | |
| Brand Name : | GreenTouch |
| Model Number : | GT-5W-15.0A-1 |
| Certification : | CE, FCC, ROHS |
| Payment Terms : | T/T, MoneyGram |
| Supply Ability : | 10,000pcs per month |
| Delivery Time : | 3-7 working days after received your payment |
15 Inch 5 Wire Resistive Touch Screen Finger Gloved Hand And Touch Pen
Activation
Model Information:
| Product model | Szie | 5wire TP Product size | |||||
| Out sizeTP(mm) | VA size(mm) | AA size(mm) | Thickness | PFC location | |||
| GT-5W-15.0A-1 | 15" | 322x247 | 310.5x236 | 304x228 | 2.3mm | Short side | |
| GT-5W-15.0D-1 | 15" | 318×274 | 310.5×236 | 304×228 | 2.3mm | Short side | |
| GT-5W-15.0E-1 | 15" | 322×259 | 311×235 | 305×229 | 2.3mm | Short side | |
| GT-5W-15.0G-1 | 15" | 331.6×254.75 | 306.6×232.1 | 305.1×229.1 | 2.3mm | Short side | |
| GT-5W-15.0H-1 | 15" | 344*260.74 | 304*228 | 2.3mm | Short side | ||
| GT-5W-15.0I-1 | 15" | 326×252 | 306.5×229.5 | 302×226 | 2.3mm | Short side | |
| Interface Type: | USB or RS232 |
| Resolution | 4096x4096 |
| Screen Ratio | 4:3 |
| Material | Glass + Film |
| Certificates | CE, FCC, RoHS |
| Input method | Finger or touch pen |
| Position accuracy | 2~5mm |
| Operating Voltage | DC ≤ 10V |
| Operating current | 5~25mA |
| Response time | Less than 10ms |
| Touch action force | 20~100g |
| Operating temperature | -10°C~60°C |
| Storage temperature | -20°C~70°C |
| Surface hardness | 3H |
| Working environment | Under sunlight, indoor and outdoor |
| Transparency | ≥75% |
| Isolation resistance | ≥20MΩ DC 25V |
| X.Y resistance | 30Ω~350Ω according to the size |
| Linearity | ≤2% |
| The number of hits | ≥35,000,000/point |
| Warranty | 1 year |
| Support Systems | Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac |

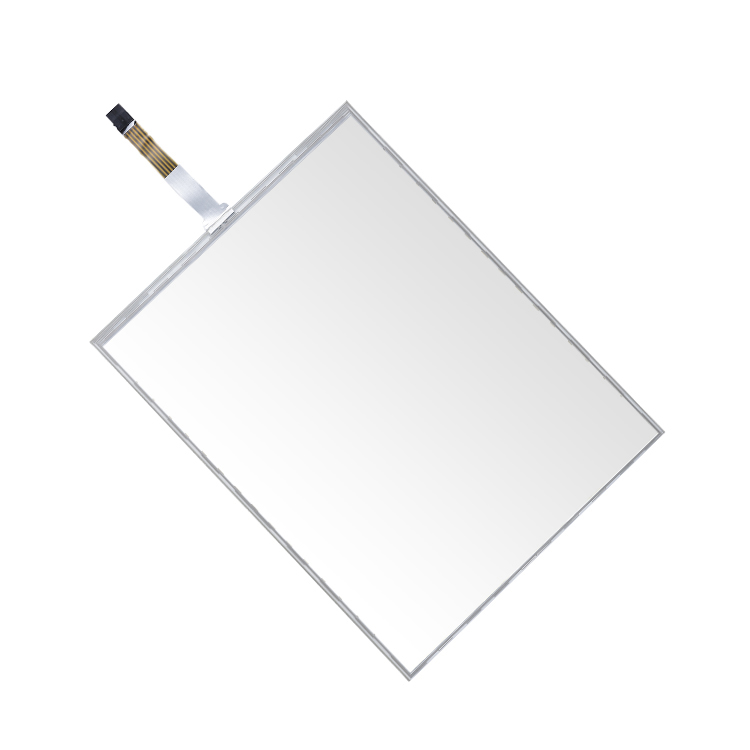

Product Image:
Applications:
Packing:
Certificate
Factory Information:
Shenzhen GreenTouch Technology Co., Ltd. is a professional
manufacturer of product.Our company specializes in R&D,
manufacture and marketing of high-grade touch screen and
value-added touch machine. Our company has our own brand—GreenTouch
and provides customers with touch products including IR touch
screen, four-wire touch screen, five-wire touch screen,various
touch screen monitors and touch all in one PC TV.
|
|
