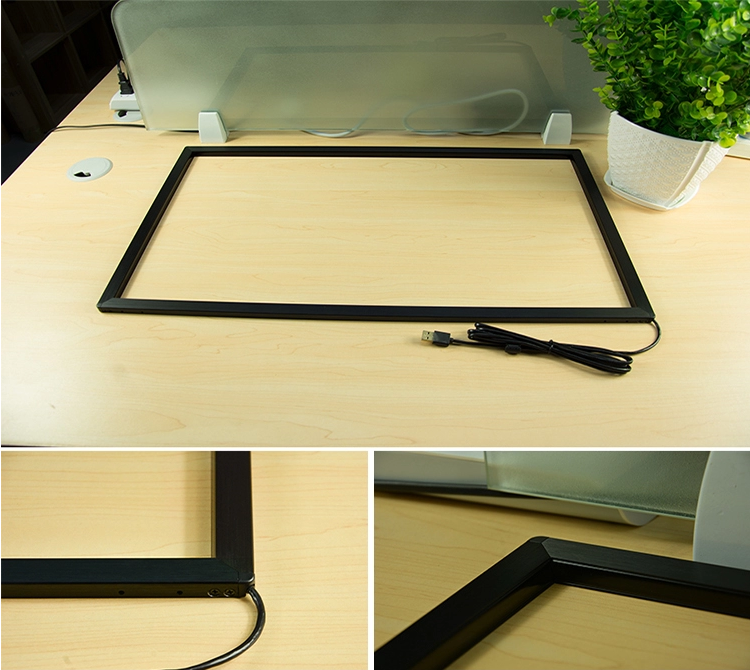

Standard Black 15.6 Inch Infrared Touch Frame CE , FCC , ROHS Certification

Our ir touch frame has advanced design and professional engineering, it is interactive display which covers all over the screen

•  It's multi touch function can perform up to 10 points.
• It is water proof and dust proof,so it has strong environmental adaptability.
• It can be applied to many screen monitor such as tv, pad.
• It has rohs/ce certification

Product Model number

Model number	Ratio	Outline(mm)	Active Area(mm)	Thickness(mm)	Touch point
GT-IR-TK15.6-1	16:10	388.5 * 237.5	346.5*195.5	8.0	10/16/20

Product Specification:

Frame material	Aluminum alloy
Exterior color	black
Glass	Built-in 3mm tempered glass
Interpolation resolution	4096*4096
Response speed	≤15ms
Touch accuracy	More than 90% of the touch area is ±2mm
Input	Fingers, touch pens, etc.
Output Type	Coordinate / output
Theoretical clicks	Unlimited times
Minimum touch object	5mm
Interface Type	USB

Electronic characteristics

Scanning frequency	200HZ
USB	A-USB
	USB-D+USB-D-
Power supply mode	USB to take power
Power supply voltage	DC+5V±5%
Working current	<200mA

Environmental characteristics

Project	Specification
Temperature range	Operating temperature:-10 °C ~ 50 °C
	Storage temperature:-20 °C ~ 60 °C
Relative humidity	Operating humidity:10%~85% RH
	Operating humidity:10%~90% RH
Light resistance	Have certain light resistance

Software features

Project	Specification
Touch/type	Single touch/2 point touch
Touch supported operating system	Windows7//8/10/Windows XP/Vista/Linux/Android

Application:

Technical Principle:

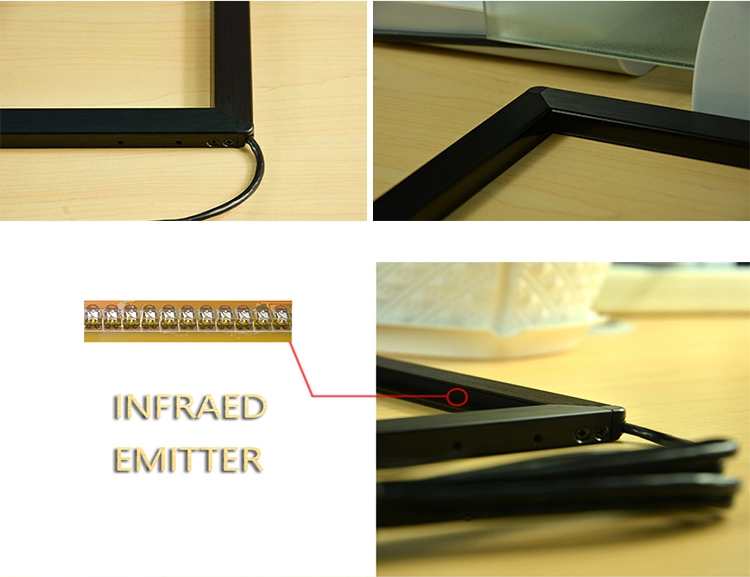

Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.
When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.
