GreenTouch ILITEK chip Capacitive touch Controller
Overview:
ILITEK chip Capacitive Touch Controller developed using for meeting more easy Business area,It’s 2511/2302/2312 chip provided by TAIWAN ILITEK Company, Compatible with 10.4”-32” capacitive touch screen for Economical touch solution.

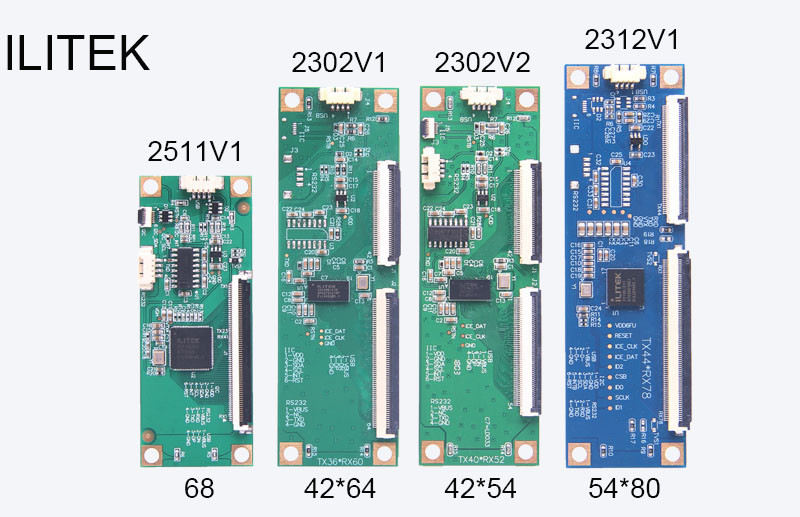

The ILITEK chip :
The Philip series capacitive controllers are designed and built for medium to large PCAP touch screens to help improve performance. The Philip series responds quickly and delivers a seamless touch experience that rivals modern consumer electronics.

2511:
2511 capacitive touch control board PCB frame size: 26mm, length: 50mm. There are 64 TRX channels, and the maximum support is 17.3 inches to the industrial control panel. Built-in ILI2511 single touch film chip, the control board is based on the power single-chip IC-ILI2511 - built-in 32 for the MCU, and has a high-speed CDC module (capacitance to data conversion module), can support three-interface mode communication package USB, I2C, with Internal boost module for internal auto calibration. Support for WindowsXP/7/8/8.1/10, Android, Linux and Mac operating systems.

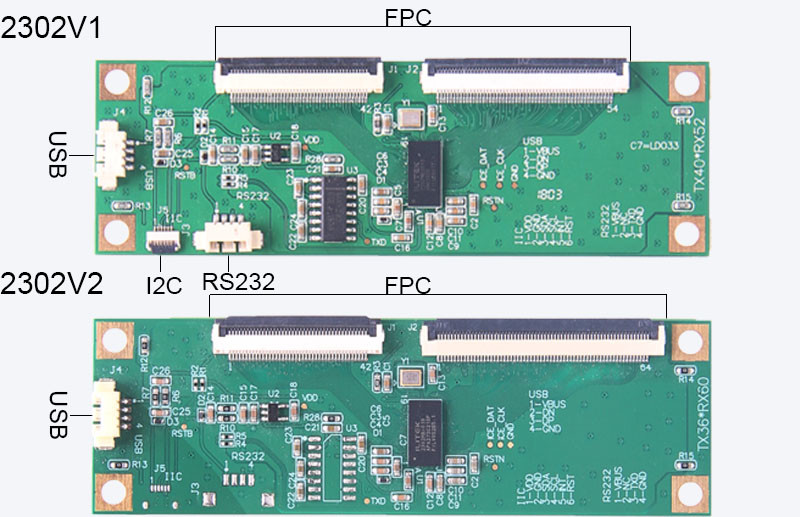

2302:
2302 capacitive touch control board shell size: 30mm, length: 94mm, support capacitive screen size 13.3 ~ 21.5. There are 96 TRX channels, 15 inches support Win8/Win10 certification, and the largest support industrial control 21.5 inches. The control board is based on the Lili ILI2302 single capacitor control chip, built-in 32-bit MCU, high-speed CDC module (capacitance to data conversion module), 96 high-voltage programmable drive acceptance channels and internal boost module, with automatic calibration function. Support WindowsXP/XP/7/8/8.1/10, Android, Linux and Mac operating systems.

2312:
2312 Capacitor Control Board PCB frame size: 30mm, length 100mm, support capacitive screen size 15.6~32. Built-in ILI2312 single touch chip, a total of 122 TRX channels, the control board is based on the power single-chip ILI2312- built-in 32-bit MCU, and has a high-speed CDC module (capacitance to data conversion module), can support three-interface mode communication including USB, I2C, RS232 serial port with internal boost module for internal self-calibration. Support for Windows XP/7/8/8.1/10, Android, Linux and Mac operating systems.

Difference:
The GreenTouch factory is located in the high-tech city of Shenzhen, China. It covers an area of 2000.00 square meters and has a plant area of over 1,700 square meters. GreenTouch design and produce resistive touch screen, projected capacitive touch screen, infrared touch screen, projected capacitive touch film, touch display and touch All-in-one, touch digital signage and open touch displays there.

Specs:

Solution contrast:

Shenzhen GreenTouch Technology Co., Ltd. is a professional manufacturer of touch screen and a high-tech enterprise. Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch screen. Our company has our own trademark—GreenTouch and provides customers with touch screens including SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen and various touch screen monitors. GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001 Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation. Our products have been certified to CE, FCC, ETL, ROHS and UL. The objective of GreenTouch is to become the most reliable supplier of touch screen, special products, high value-added products and touch solutions in the world!
