Shenzhen GreenTouch Technology Co., Ltd Adhere to people-oriented, customer-oriented, quality first, service. Dedicated to providing customers with quality products, service and technical support.
10 Years
| Ask Lasest Price | |
| Brand Name : | GreenTouch |
| Model Number : | GT-TC-1705C |
| Certification : | CE, FCC, ROHS |
| Payment Terms : | T/T, MoneyGram |
| Supply Ability : | 10,000pcs per month |
| Delivery Time : | 3-7 working days after received your payment |
17 Inch Touch Computer- －5C Series-Open touch all-in-one PC
Features
• Optional Motherboard Configuration inlcudes:
Intel Bay Trail-d chipset with: Celeron J1900
Intel Core series with Intel Core I3-U
Intel Core I5-U
Intel Core I7-U
• Optional touch technologies include:
Projected capacitive
• Compact and easy to integrate with mounting from sides or top and bottom; also a VESA mount option
• Worldwide agency approvals
• One year standard warranty
Specification
Case/ frame color | Black / Silver color |
Machine dimensions | 397.5mm(W) x329.5 mm(H),Thickness: 57 mm) |
Display type | 17’Diagonal,Ratio5:4,Active matrix TFT LCD, LED backlight |
Resolution(pixel) | 1280 x 1024 @ 60Hz |
Active Area Dimensions | 337.92mm(H) x 270.336mm(V) |
Display Colors | 16.7M |
Brightness (Standard) | 250 cd/m2 |
Response time (standard) | 5ms |
View Angle(from center) | Horizontal (left / right): ±85° or total 170° Vertical (up / down): ± 80° or a total of 160° |
Contrast ratio (standard) | 1000: 1(Typ.) |
Touch Technology | projected capacitive |
Motherboard | Intel Bay Trail-d chipset with: Celeron J1900@1.99GHz Intel Core-U chipset with: Intel Core I3-U Intel Core I5-U Intel Core I7-U |
Graphics | Onboard Intel HD graphics |
Sound Card | Onboard Realtek ALC662HD audio decoding |
RAM | Optional 2GB,4GB,8GB |
SSD | 32G,64G,128G |
HDD | Another 2.5’’HDD can be added |
Wifi | Built-in 802.11b / g / n wireless, external two 3DB omnidirectional antenna |
Speakers | Built-in 2*3W speakers |
Extra Video output | 1*VGA;1*HDMI |
USB interface | 4*USB TYPE-A |
Network card | 1 road onboard Realtek 8111e Gigabit |
Audio Interface | 1*3.5mm Audio input;1*3.5mm Audio output |
RS232 interface | 4*RS232(standard)interfaces |
Power | External DC, input voltage DC: 12V; INPUT POWER CONNECTOR
SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle;
Cartridge ID: 5.5 mm |
Power consumption (standard) | Depend on Motherboard and the minimum is 25W |
Supported OS | Support Windows OS(suggest Windows7 up );Linux;Android x86 |
Temperature | Operating:0°Cto60°C;Storage:-20°C to 60°C |
Humidity | Operating: 20% to 80% (non-condensing); Storage: 5% to 95% (non- condensing) |
Warranty | 1 year |
Weight (approx.) | Net weight: 4.5 kg(Typ.); Shipping: (6 kg (reference) |
Mounting options | 100mm or 75mm VESA mounting,open bracket mounting |
Agency Approvals | UL,cUL (Recognized), FCC, CE,CCC, China RoHS CQC |
Ordering Information :
Model | Part Number | CPU | RAM | Storage | Surface Treatment | Availability |
GT-TC-1705C-J1900-D4-S64 | Intel J1900 | 4G | 64G | Clear | Worldwide | |
GT-TC-1705C-I3-D4-H500 | Intel Core i3 | 4G | 500G(HDD) | Clear | Worldwide | |
1705C | GT-TC-1705C-I5-D8-S128 | Intel Core i5 | 8G | 128G | Clear | Worldwide |
GT-TC-1705C-I7-D8-S256 | Intel Core i7 | 8G | 256G | Clear | Worldwide |

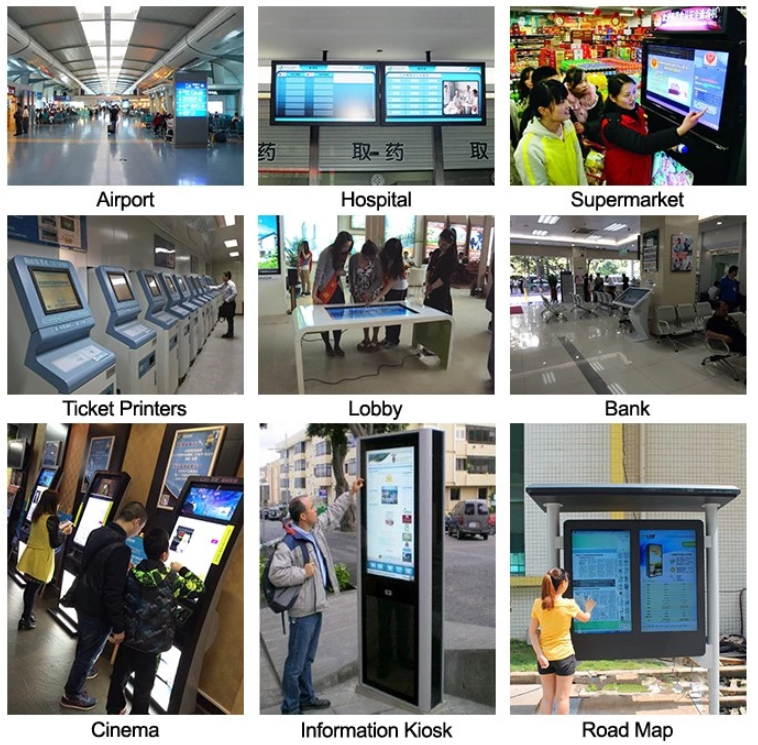

Applications
• Information Kiosk
• Game and Entertainment
• Industrial Automation
• Self-checking service
