    IP65 Touch Screen Monitor

    Ask Lasest Price
    Brand Name : GreenTouch
    Certification : CE, FCC, ROHS
    Payment Terms : MoneyGram, Western Union, T/T, D/P
    Supply Ability : 3,000pcs per month
    Delivery Time : 10 working days after received your payment
    • Product Details
    • Company Profile

    IP65 Touch Screen Monitor

    Open Frame Scan Frequency 17 Inch Touch Screen Monitor Contrast Ratio And Brightness


    Detailed Product Description

    • Meet NEMA 3 and IEC IP65 waterproof standard

    • High quality panel with high brightness,high contrast ratio and broad viewing angle

    • Multiple mounting options including VESA mount, horizontal or vertical bracket-mount

    • Superior viewing angles, contrast ratio and brightness

    • Our products have passed CE, FCC, RoHS certification!

    Produt Specification
    Part Number

    4 wire resistive:TM-1705A-4RHD

    5 wire resistive:TM-1705A-5RHD

    Projected capacitive:TM-1705A-CTHD

    Infrared:TM-1705A-IRHD

    Surface acoustic wave:TM-1705A-AWHD

    Enclosure ColorSilver
    Touch Technology&Touch Point

    4 wire resistive:single touch

    5 wire resistive:single touch

    Projected capacitive:10-point touch

    Infrared:2/4 point touch(optional)

    Surface acoustic wave: Single touch

    Touch InterfaceRS232/USB2.0
    Diagonal17"Diagonal,Ratio5:4,Active matrix TFT LCD, LED backlight
    Display screen (OSD)

    Visit via turn on/off button in OSD. Control unit:menu,up,down,exit,power OSD:contrast

    ratio,brightness,horizontal/vertical,RGB,time,phase,select default value,language

    (English,Germany, Spanish, Japanese,French),OSD validate/invalidate,power,OSD men

    Screen Ratio5:4
    Acitive Area (mm)337.9mm x 270.3mm
    Resolution1280 x 1024
    Other resolutions1024 x 768 ; 800 x 600; 720 x 400 ;720 x 350; 640 x 480,60 Hz;
    Viewing angle

    Horizontal (left / right): ± 80 ° or total 160 °

    Vertical (up / down): ± 70 ° or a total of 140 °

    Color Pixel16.2m
    Brightness(Typ.)

    LCD panel:250 nits 4-wire resistive/5-wire resistive:200nits(Typ.)

    Projected Capacitive/Surface Acoustice Wave/Infrared 250nits(Typ.)

    Response time (standard)5ms
    Contrast ratio (standard)1000:1
    Video input frequencyHorizontal:31.5-60.2kHz;Vertical:56.3-75Hz
    Video InterfaceHDMI,VGA,DVI
    PowerExternel DC-Optional adapter
    Power Input Interface

    INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC)-Type: DC cartridge

    receptacle;Cartridge ID:5.5mm(±0.3mm);Needle OD:2.0mm(+0.0-0.1mm);

    Cartridge depth:8(±0.3mm).External DC,input voltage DC:12V

    Power connector(on power adapter)-Type:DC cartridge Plug:Cartridge

    OD:5.5mm(±0.1mm);Needle Inner Diameter:2.1mm(±0.1mm);

    Cartridge Length:9.5mm(±0.5mm)

    Input Voltage12VDC+/-5%
    Power Consumption(Typ.)

    Monitor+Adapter 2230V/50Hz

    Working:15W

    Sleep:1.5W

    Turn-off:0.5W

    Dimensions

    4-wire/5-wire resistive touch:262.0mm X300mmX48mm

    Projected capacitve touch:300mmX320mmX48mm

    Infrared Touch:376mmX308mmX53mm

    SAW touch:388mmX320mmX50mm

    Dimensions for Shipping510mmX435mmX125mm
    Net Weight4.3kg
    Gross Weight5.8kg
    Working Temperature0℃ to 40℃/32°F to 104°F
    Storage Temperature-20℃ to 60℃,-4°F to 140°F
    Humidity

    Working:20% to 80%

    Stocking:10% to 95%

    Tightness

    Touch panel seal to bezel

    LCD Touch panel seal to LCD

    MTBF50000 hours
    Warranty1 year
    Institute CertificatesUL,A1:B30cUL(Recognized),FCC,CE,China RoHS
    Installation Methods100mm or 75mm VESA Install:Open frame installation kit
    Content in package

    Product data sheet With bezel:L-shape install kit and W-shape crews

    Quality Cetificates Warranty card

    Opeional/External devices

    HDMI cable

    DVI cable

    VGA cable

    Touch USB cable

    North America Power cable

    Europe&South Korea Power cable

    Britain Power cable

    China Power cable

    Taiwan Power cable

    Japan Power cable

    Argentina Power cable

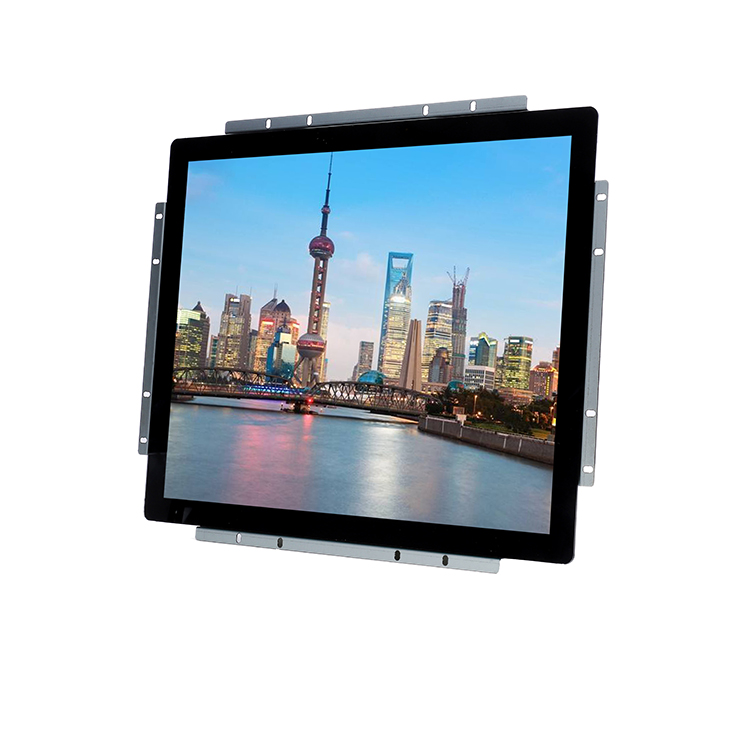

    Product image:
    Applications:


    Special for desktop public service inquiry system,POS systems, hotel reception, self-service, ATM,

    industrial manufacturing, Hospital information center, information systems and other interactive

    touch application design .
