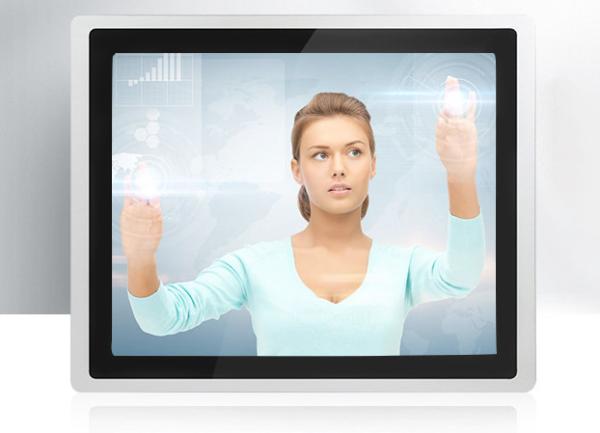

Touch Interface 17 Inch Touch Screen Monitor Outstanding Vivid
Color Image Quality
Description:
Product Specification:
| Part Number | Standard Type:GT-TM-1705C |
| Enclosure/Bezel Color | Black front cover,Silver back cover |
| LCD Type | Activer matrix TFT LCD,LED backlight |
| Diagonal | 17"diagonal |
| Ratio | 4:3 |
| Active Area Dimensions | Horizontal:337.92mm;Vertical:270.34mm |
| Monitor Size | Width:397.5mm x Height:329.5mm x Thickness:47mm |
| Resolution | 1280x1024@60Hz |
| Other available Resolution | 1024x768;800x600;720x400;720x350;640x480;60Hz;75Hz |
| Color | 16.7M |
| Brightness(Typ.) | 250cd/m² |
| Brightness(Standard)(cd/M2) | 5ms |
| Viewing Angle(from center) | Horizonta(left/right):±85° or total 170° |
| Vertical(up/down):±80° or a total of 160° | |
| Contrast ratio(Standard) | 1000:1 |
| Input video formats | Analog VGA and digital DVI(optional HDMI) |
| Input video Signal Connector | Female head DE-15 connector,female head DVI-D,Dual-Link connector, female head HDMI connector |
| Scan frequency | Horizontal:31.5-60.2kHz;vertical:56.3-75Hz |
| Power | External DC,input voltage DC:12V;INPUT POWER CONNECTOR SPECIFICATIONS(for all in one PC) -Type:DC cartridge receptacle;Cartridge ID:5.5mm(±0.3mm);Needle OD:2.0mm (+0.0-0.1mm);Cartridgedepth:8.0mm(±0.3mm) |
Power connector(on power adapter)-Type:DC cartridge Plug:Cartridge OD:5.5mm(±0.1mm);Needle Inner Diameter:2.1mm(±0.1mm);Cartridge Length:9.5mm(±0.5mm) | |
| Power consumption(Standard) | Display only:13.5W(Typ.) |
| Temperature | Operating:0℃to40℃;Storage:-20 ℃ to 60 ℃ |
| Humidity | Operating:20% to 80% (no condensation);Storage:10% to 90% (non-condensing) |
| MTBF | 50000 hours |
| Weight(approx.) | Net weight:4.0kg(Typ.);Shipping:5.5kg |
| Warranty | 1 year |
| OSD | Digital OSD |
| User Controls | OSD Button:Menu,UP,Down,Select,Power；OSD:Contrast,Brightness, Horizontal/Vertical Bits Clock,phase,call default,language(English, German,Spanish,Japanese,French);OSD Fail/Active:Power,OSD menu |
| Mounting options | 100mm or 75mm VESA mounting,open bracket mounting |
| Agency Approvals | UUL,cUL(Recognized),FCC,CE,China RoHS CQC |
| Touch screen Type | Capacitive touch screen |
Application
Suitable for hotel reception,industrial manufacturing, kiosks, ATM,Hospital , offices, information systems ,
Education, pharmacy,department store and other interactive touch
application design .
Industrial touch monitor Advantages
GreenTouch's Industrial touch monitor use 4mm/6mm Vandal proof SAW Touch screen that independently
developed and produced by our company. It has a high-quality, cost-effective, good durability, and stability
character.Higher sensitivity and response speed than same product, very smoothly when touch and draw line.
Product overview
GreenTouch's Industrial touch screen monitor size from 15 to 19 inches, use with 4mm/6mm Vandal proof
SAW Touchscreens that independently developed and produced by our
company.
It has a high-quality, cost-effective, good durability, and
stability character.Higher sensitivity and response
speed than same product.Removeable External mounting bracket and National standard VESA install holes.
National standard professional production line, one million dust-free environment ,screen body and LCD
screen fit.This kind of the open frame constructure and Removable side mounting bracket are very good
for Kiosk ,touch terminal etc.
|
|
