10.4 Inch 5 Wire Resistive Touch Screen Finger Gloved Hand And Touch Pen Activation
Description:
Model Information:
| Product model | Szie | 5wire TP Product size | |||||
| Out sizeTP(mm) | VA size(mm) | AA size(mm) | Thickness | PFC location | |||
| GT-5W-10.4A-1 | 10.4" | 234x178 | 216.00x163.4 | 212x159.4 | 2.3mm | Short side | |
| Interface Type: | USB or RS232 |
| Resolution | 4096x4096 |
| Screen Ratio | 4:3 |
| Material | Glass + Film |
| Certificates | CE, FCC, RoHS |
| Input method | Finger or touch pen |
| Position accuracy | 2~5mm |
| Operating Voltage | DC ≤ 10V |
| Operating current | 5~25mA |
| Response time | Less than 10ms |
| Touch action force | 20~100g |
| Operating temperature | -10°C~60°C |
| Storage temperature | -20°C~70°C |
| Surface hardness | 3H |
| Working environment | Under sunlight, indoor and outdoor |
| Transparency | ≥75% |
| Isolation resistance | ≥20MΩ DC 25V |
| X.Y resistance | 30Ω~350Ω according to the size |
| Linearity | ≤2% |
| The number of hits | ≥35,000,000/point |
| Warranty | 1 year |
| Support Systems | Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac |

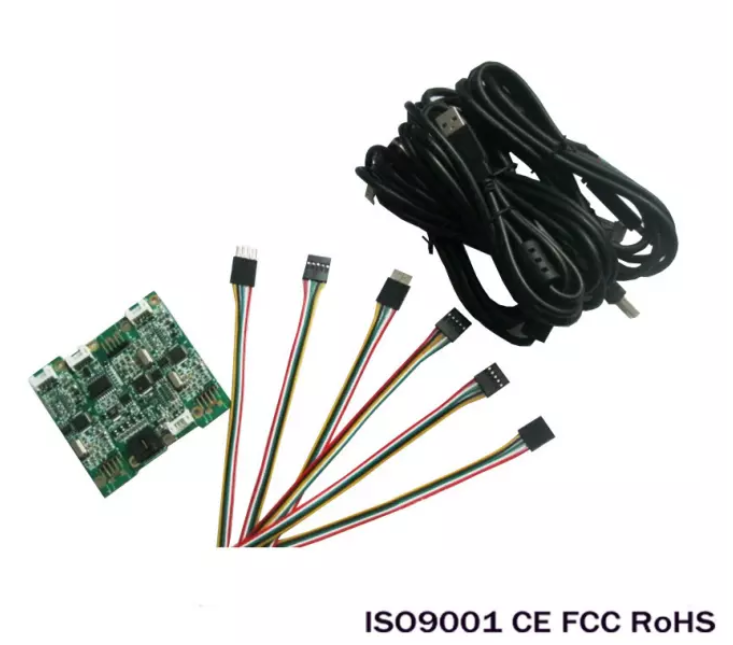

Products image:
Packing and shipping:
About us:
|
|
